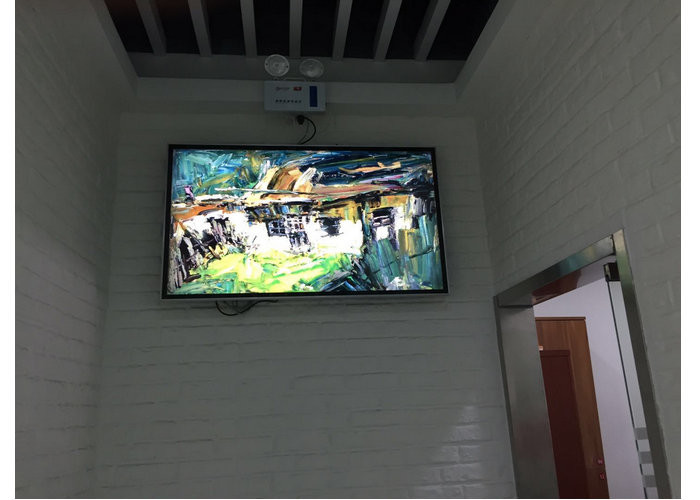

Rockchip RK3288 Android Motherboard For Indoor Digital LCD Advertising Display

Product Description:

The big board of intelligent industrial all-in-one machine adopts Rockchip RK3288 quad-core chip solution. Support Android8.0 and above system. Enhanced power management circuitry. Support common external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, medical, large advertising machines, educational video terminals and other equipment.

RK3288 Board is a high-performance android motherboard powered by a 12V/2A DC power supply. It is the perfect choice for android 10 motherboards. This mainboard features 2GB/4GB RAM, a 3.5mm audio jack, 16GB/32GB EMMC ROM, and support for both USB camera and MIPI camera. It is a reliable and powerful android motherboard for various applications.

Features:

Supports various LVDS interface displays from 7 inches to 84 inches (point-to-point full HD display 1920*1080).

■Support EDP interface display.

■Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

■Multiple network interfaces: Ethernet, Wireless Wifi, Bluetooth.

■Multi-channel USB interface, serial port.

■Strong anti-electromagnetic interference and electromagnetic compatibility.

• Product Name: RK3288 Board
• OS: Android 7-10 Version
• ROM: 16GB/32GB EMMC
• Display: LVDS/EDP/MIPI/HD Out Are Optional
• Network: WiFi 802.11 B/g/n (2.4G/5G Wifi Optional)
• Camera: Support USB Camera And MIPI Camera
• Industrial Control Board: Yes
• Android 10 Motherboard: Yes
• Industrial Motherboard: Yes

Technical Parameters:

Image rotation	Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock	Built-in real-time clock powered battery
Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals)

Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG (support USB camera@500W USB printer, U disk, mouse, keyboard, standard USB peripherals)
	3 sets of serial ports. Support external serial device modules (NFC modules, printers, card readers, etc.)
	TF card, maximum support 32GB
	Class D amplifier: 3W*2 8 ohms, support microphone
	HDMI 2.0 output
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format
Video	Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture	Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter	Input:AC100-240V.50-60HZ, Output: DC12V 3A

Applications:

Sunchip and ADW's Rockchip RK3288 Board is an advanced android mainboard designed for a wide range of applications. It is a powerful Elevator PCB Board that supports the latest Android 7-10 version and is equipped with the Rockchip RK3288 CPU. It also features built-in WiFi 802.11 b/g/n (2.4G/5G Wifi Optional) and USB Camera and MIPI Camera support. This android 10 motherboard also comes with a DC 12V/2A power supply and is certified with CE, ROHS, FCC, and ISO9001. The minimum order quantity is 2pcs and the price is negotiable. It comes with 60pcs/Carton packaging and samples can be sent out in 1-7 days while the MP lead time is 15-30 days. The payment terms are 100% T/T for samples and negotiable for MP and the supply ability is 10,000pcs/Month.

Customization:

Available Customization that from Sunchip:

Regarding software:

1. Booting logo/animation

2. Model number of the Android System

3. Build number of the Android System

4. Pre-install APK

5. Delete APK

6. Set defaulted time zone

7. Set defaulted language

8. Virtual Keyboard (the current defaulted is English Keyboard)

9. Other requirements etc.

Regarding hardware: ODM layout

……More customization is waiting for your checking.

Support and Services:

Introduction of the advantages from Sunchip:

1, More than 10 years of PCBA design and production experience.

2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).

ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.

3, Team of more than 160 people.

4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.

5, Got ISO9001 factory certification.

6, More than 3500 square meters of office and factory area
